10mm Od Minifix Cam Lock | Steel Eccentric Furniture Connectors
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINHAN |
| Certification: | SGS |
| Model Number: | JH-1052 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 Pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | by carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Application: | Desk Construction | Height: | 13.5mm |
|---|---|---|---|
| Logo: | Available | Finish: | Zinc Plated |
| Panel Supported: | 15-18mm Thickness | Assemble: | Easy |
| Salt Spray Test: | 24H/48H | Usage: | DIY Projects |
| Highlight: | Eccentric Furniture Connectors,10mm Minifix Cam Lock,Steel Minifix Cam Lock |
||
Product Description
Product Description:

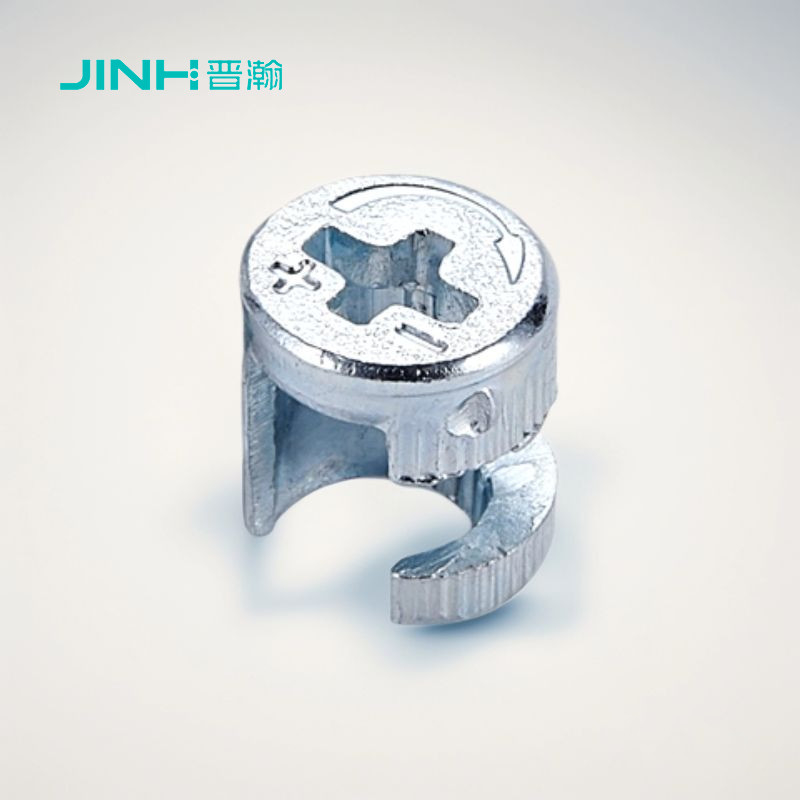

The JINHAN JH-1052 Minifix Cam Lock is a high-strength connector designed for seamless and durable furniture assembly. Crafted from cold-rolled carbon steel with a zinc-plated finish, this cam lock ensures exceptional corrosion resistance and longevity. Its compact design (10mm diameter, 13.5mm height) and hidden installation make it ideal for discreet, aesthetic integration into cabinets, wardrobes, storage units, and other furniture applications.
Key Features
Superior Material: Made from cold-drawn high-quality carbon steel (not zinc alloy), offering enhanced strength and durability compared to industry-standard alternatives.
Secure Grip: Vertical ridges on both the inner and outer surfaces of the cam mechanism increase friction, ensuring a tighter, more reliable hold.
Sleek Installation: Hidden design eliminates visible hardware, maintaining a clean, professional appearance.

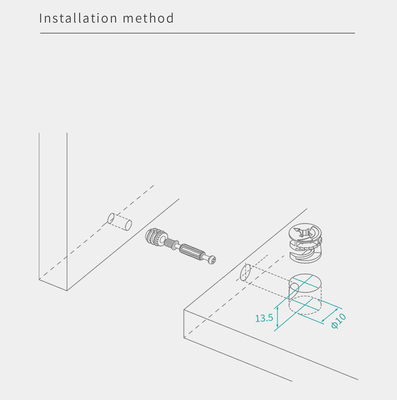

Optimized Compatibility: Precisely engineered for 13.5mm pre-drilled holes in furniture panels.
Robust Construction: Zinc-plated surface treatment resists rust and wear, extending product lifespan.
Applications
Furniture Assembly: Perfect for connecting panels in cabinets, wardrobes, bookshelves, and storage units.
Modular Systems: Suitable for flat-pack and ready-to-assemble (RTA) furniture requiring durable, low-profile fasteners.
Commercial & Residential Use: Ideal for both home DIY projects and industrial manufacturing due to its reliability and ease of installation.
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Technical Parameters:
| ODM | Available |
| Product Type | Furniture Hardware |
| Application | DIY Projects: Cam connectors are also popular in DIY furniture projects where individuals design and build their own furniture pieces. They simplify the assembly process and ensure a professional finish.and more. |
| Salt Spray Test | 24H/48H |
| Assemble | Easy |
| Usage | Locking And Securing Panel Furniture |

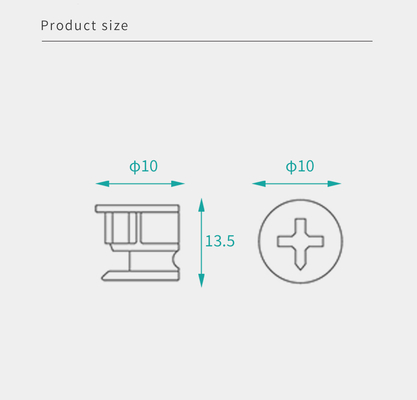

| Diameter | 10mm |
| Panel supported | 15-18mm Thickness |
| Torque | Up To 12N |
| Material | Cold Rolled Steel |
Packing Method:
3000/4000/5000pcs per carton or as per your requirements.
