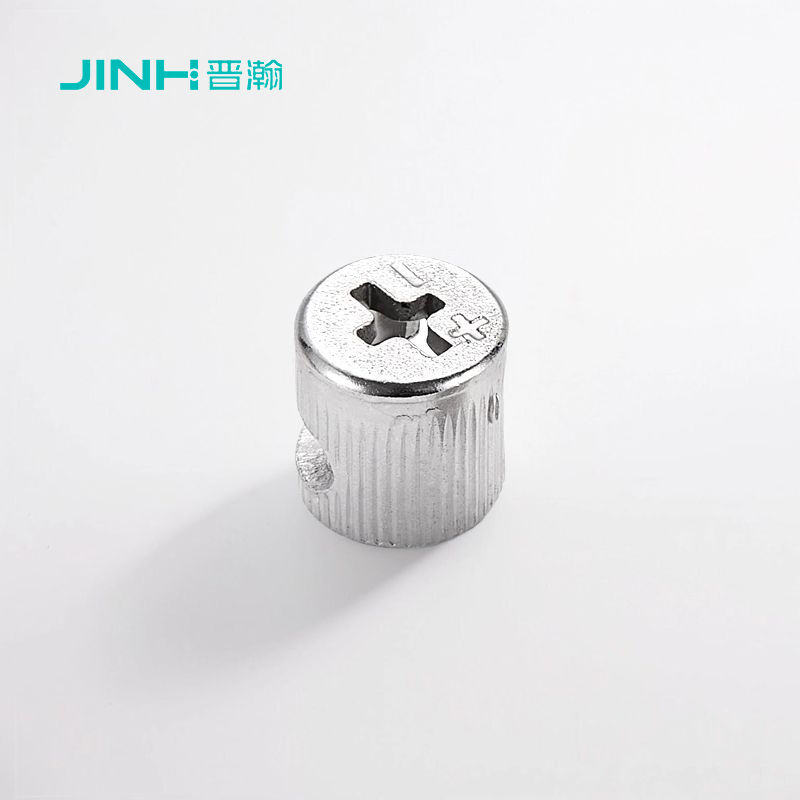

JINHAN JH-1050 15mm Minifix Cam Lock, Cold Rolled Steel Nickel-Plated Eccentric Connector for Cabinet Furniture, Hidden Installation, ISO 9001 Certified
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINHAN |
| Certification: | SGS |
| Model Number: | JH-1050 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | by carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Name: | Eccentric Cam | Installation Type: | Concealed Drop-in |
|---|---|---|---|
| Compatible Screws: | Minifix Bolts | Color: | Metallic Silver |
| Lifespan: | 10+ Years Residential Use | Package Unit: | Polybag |
| OEM: | Available | ODM: | Available |
| Highlight: | 15mm Minifix cam lock connector,Nickel-plated Minifix cam lock,ISO 9001 certified cabinet connector |
||
Product Description
JINHAN JH-1050 15mm Minifix Cam Lock, Cold Rolled Steel Nickel-Plated Eccentric Connector for Cabinet Furniture, Hidden Installation, ISO 9001 Certified
Product Overview
The JINHAN JH-1050 Minifix Cam Lock is a premium eccentric wheel component engineered for robust and discreet furniture assembly. Crafted from high-quality materials and designed for reliability, it is the ideal solution for demanding applications in cabinet, wardrobe, and storage unit construction.
Key Features
- Superior Material Strength: Made from cold-rolled carbon steel, offering significantly higher strength and durability compared to common zinc alloy alternatives, ensuring a long-lasting, wobble-free connection.
- Enhanced Friction & Grip: Both the inner and outer surfaces of the cam feature raised vertical ribs. This unique design dramatically increases friction during tightening, resulting in a firmer, more secure, and reliable lock.
- Clean, Aesthetic Finish: The nickel plating provides a corrosion-resistant surface with a consistent, professional appearance. Its hidden installation design keeps mechanics out of sight for a sleek, finished look.
- Engineered for Precision: Designed for a standard 15mm diameter hole with a 12.5mm depth, ensuring compatibility and easy installation in most furniture panels.
Specifications
| Brand & Model | JINHAN JH-1050 |
|---|---|
| Type | Eccentric Connector / Minifix Cam Lock |
| Material | Cold Rolled Carbon Steel |
| Surface Finish | Nickel-Plated |
| Installation Type | Hidden / Concealed |
| Diameter | 15 mm |
| Height / Depth | 12.5 mm |
| Panel Hole Depth | 12.5 mm |
JINHAN is a certified manufacturer committed to quality. Our production is ISO 9001:2015 certified, and this product is backed by relevant SGS test reports. We are proud to be a long-term strategic partner to many leading high-end custom cabinet and wardrobe manufacturers in China, supplying components that meet rigorous standards for quality and performance.
Product Documentation
Download E-Catalogue (PDF)
Technical Parameters
| Logo | Available |
|---|---|
| Product Type | Furniture Hardware |
| Diameter | 15mm |
| Usage | Children's Furniture: Furniture designed for children's rooms often utilizes cam connectors because they are safe, easy to assemble, and can be adjusted as children grow or as needs change. |
| Assemble | Easy |
| Torque | Up To 12N |
| Material | Cold Rolled Steel |
| ODM | Available |
| OEM | Available |
| Height | 12.5mm |
Packing Method
3000/4000/5000pcs per carton or as per your requirements.
