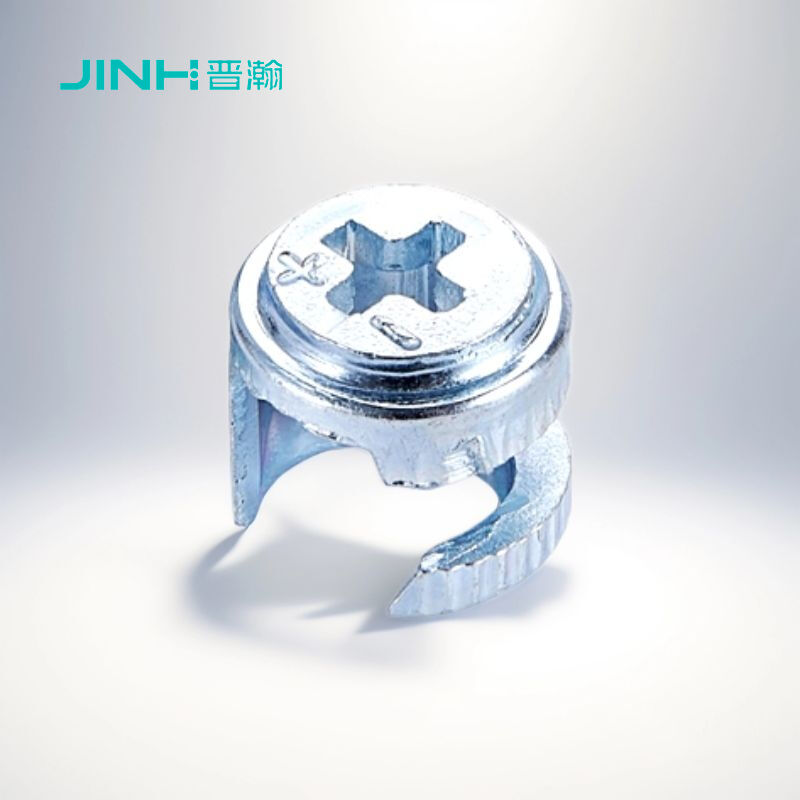

JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-1049 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | by carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Common Aliases: | Eccentric Cam Fastener, Furniture Lock Cam | Material: | Cold Rolled Carbon Steel SPCC |
|---|---|---|---|
| Coating Type: | Electroplated Blue Zinc | Friction Mechanism: | Anti-rotation Vertical Ridges |
| Installation Type: | Concealed (in-panel) | Load Capacity: | High Shear Strength For Dynamic Loads |
| Ideal Panel Thickness: | 16-25mm (standard Board) | Industry Standards: | EN 320, ASTM A1008 |
| Highlight: | 12mm minifix cam lock,cold rolled steel furniture fastener,blue zinc coated cabinet fastener |
||
Product Description
JH-1049 12mm Diameter Minifix Cam Lock
Elevate your furniture assembly with the JINHAN JH-1049 Minifix Cam Lock. Engineered for superior strength and a clean, concealed look, this cam lock connector is the reliable choice for professional cabinet and wardrobe manufacturing. Crafted from high-quality cold-rolled carbon steel and finished with a durable blue zinc coating, it outperforms common zinc alloy counterparts in both durability and holding power.
Key Features
- Enhanced Material Strength: Made from cold-rolled carbon steel, offering greater tensile strength and longevity compared to standard zinc alloy cam locks.
- Secure & Stable Connection: Features unique vertical ridges on both the inner and outer surfaces of the cam, providing exceptional grip and preventing loosening over time.
- Aesthetic Concealed Design: Offers a hidden installation that keeps hardware out of sight for a sleek, professional furniture finish.
- Durable Protective Finish: The blue zinc plating provides excellent corrosion resistance, ensuring reliability in various environments.
- Precision Fit: Designed for a standard 15mm system board, requiring a clean 12mm diameter hole with a depth of 13.5mm for perfect installation.
Specifications
| Attribute | Specification |
|---|---|
| Model | JH-1049 |
| Product Type | Minifix / Cam Lock / Eccentric Connector |
| Material | Cold Rolled Carbon Steel |
| Surface Finish | Blue Zinc Plated |
| Installation | Concealed |
| Cam Diameter | 12 mm |
| Total Height | 13.5 mm |
| Required Panel Hole Diameter | 12 mm |
| Required Panel Hole Depth | 13.5 mm |
| Common Application | Cabinets, Wardrobes, Storage Units, Panel Furniture |
Product Documentation
Download Product Catalog (PDF)
Product Images
Packing Information
3000/4000/5000pcs per carton or as per your requirements.
