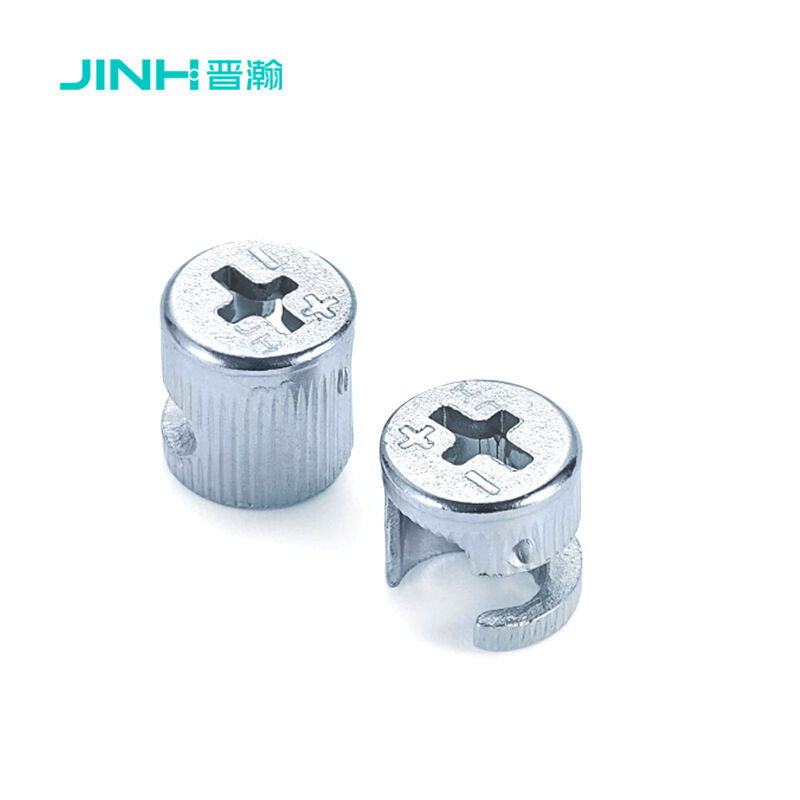

JH-1040 12mm Zinc-Plated Cold Rolled Steel Cam Lock for Furniture, Heavy-Duty Concealed Eccentric Fitting, 12.5mm Drill Depth, for Cabinet & Wardrobe Assembly
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINHAN |
| Certification: | SGS |
| Model Number: | JH-1040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | by carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Alternate Names: | Eccentric Cam Lock, Cam Disc Connector | Material Grade: | Cold Rolled Carbon Steel |
|---|---|---|---|
| Color: | Metallic Silver (Zinc Finish) | Clamping Principle: | Radial Compression Via Inner Ribs |
| Installation Type: | Concealed/Recessed Mounting | Min. Order Quantity: | 10000 Pieces |
| End Use Application: | Particleboard/MDF Panel Joining | Quality Assurance: | Batch Traceability System |
| Highlight: | 12mm zinc-plated cam lock,heavy-duty furniture cam lock,cabinet wardrobe eccentric fitting |
||
Product Description
JH-1040 12mm Zinc-Plated Cold Rolled Steel Cam Lock
Heavy-duty concealed eccentric fitting with 12.5mm drill depth, designed for cabinet and wardrobe assembly. The JINHAN JH-1040 is a premium cam connector crafted from high-quality cold rolled carbon steel for exceptional strength and durability.
Key Features
- Enhanced Strength Material: Made from cold rolled carbon steel for superior tensile strength and durability compared to standard zinc alloy cams
- Concealed & Aesthetic Design: Installs flush within panels for clean, professional finish with no visible exterior hardware
- Superior Grip Technology: Raised vertical ribs on inner and outer surfaces increase friction to prevent loosening
- Precision Fit: Engineered for standard 12.5mm drill depth ensuring easy installation and optimal performance
- Wide Compatibility: Ideal for kitchen cabinets, wardrobes, storage units, and modular furniture systems
Technical Specifications
| Brand | JINHAN |
|---|---|
| Model | JH-1040 |
| Product Type | Eccentric Cam / Cam Lock |
| Material | Cold Rolled Carbon Steel |
| Surface Finish | Zinc Plated |
| Color | Silver Metallic |
| Cam Diameter | 12 mm |
| Total Height / Depth | 12.5 mm |
| Required Panel Drill Depth | 12.5 mm |
JINHAN is an ISO 9001:2015 certified manufacturer, and this product is backed by relevant SGS test reports. We are a trusted long-term strategic partner to numerous top-tier high-end custom cabinet and wardrobe manufacturers in China.
Download Product Catalog (PDF)
Product Images
