JH-2168 40mm Furniture Connecting Bolt for Eccentric Cams | Cold Drawn Carbon Steel with Black Nickel Plating | Up to 12N Torque | For 15mm+ Board
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Fastening Type: | Cam Lock & Expansion Insert | Core Material: | Carbon Steel / Engineering Nylon |
|---|---|---|---|
| Surface Coating: | Black Nickel Electroplating | Alternative Name: | Furniture Connector System |
| Torque Tolerance: | 12N·m Maximum | Fixation Principle: | Radial Expansion Locking |
| Compatible Board Thickness: | 15mm - 40mm (Optimal At 18-25mm) | Commercial Type: | OEM/ODM Industrial Hardware |
| Highlight: | 40mm furniture connecting bolt,carbon steel minifix bolt,black nickel plated connecting bolt |
||
Product Description

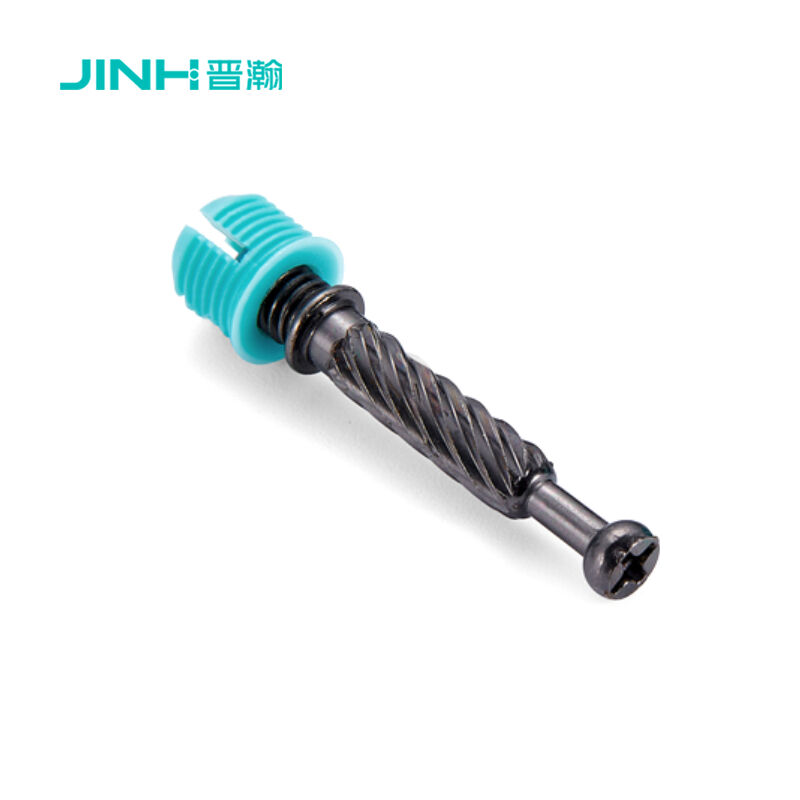

JH-2168 40mm Furniture Connecting Bolt for Eccentric Cams
The JH-2168 is a high-performance furniture connector kit designed for robust and concealed assembly in flat-pack and ready-to-assemble (RTA) furniture. This set combines a metal screw for eccentric cams and a matching nylon expansion bolt, providing a strong, reliable, and invisible joint between two panels, ideal for cabinets, wardrobes, and bookcases.
Key Features
Durable Construction: Made from cold-drawn carbon steel for excellent strength and fatigue resistance
Enhanced Corrosion Resistance: Black nickel plating provides superior surface protection
Secure Expansion Lock: Nylon expansion bolt creates strong, rattle-free permanent fixture
Optimized for Modern Panels: Engineered for boards with minimum 15mm thickness
Reliable Performance: Torque rating up to 12N ensures stable joints
Streamlined Assembly: Tool-friendly design for efficient manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | JH-2168 |
| Product Type | Eccentric Cam Connecting Bolt & Expansion Bolt Set |
| Material (Bolt) | Cold Drawn Carbon Steel |
| Material (Expansion Part) | Nylon |
| Total Length | 40 mm |
| Max. Torque | Up to 12N |
| Surface Finish | Black Nickel Plated |
| Minimum Panel Thickness | 15mm |
| Salt Spray Test | 24H / 48H |
Product Images
Our products are manufactured under ISO 9001:2015 certification and come with SGS test reports. As a trusted OEM/ODM supplier, we partner with top-tier cabinet and wardrobe customizers in China, ensuring premium quality and reliability for B2B clients worldwide.
