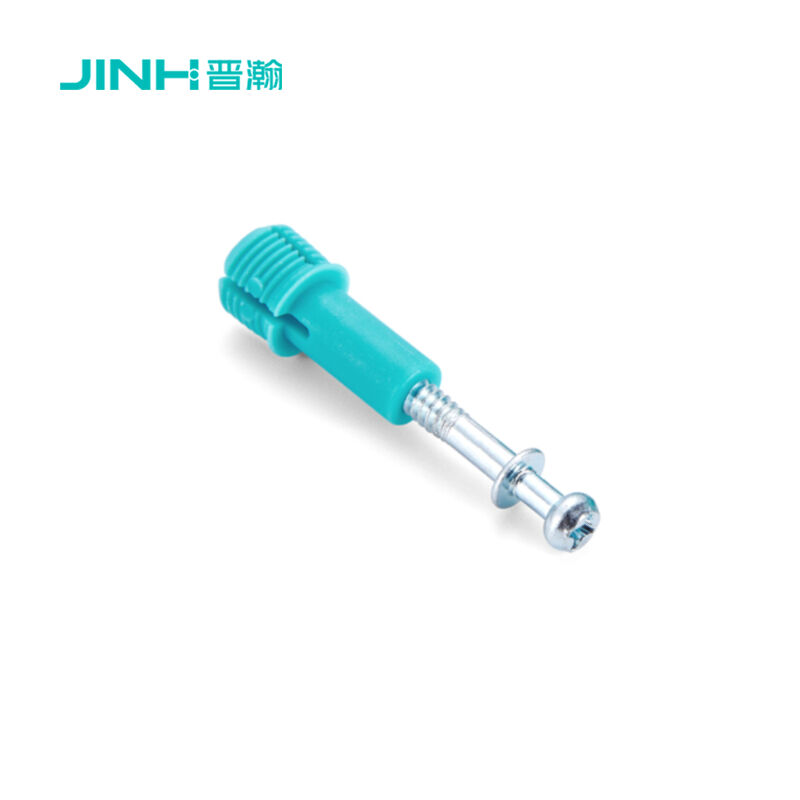

JH-2163 Furniture Connecting Bolt & Expanding Nut, 32mm Minifix Cam Lock Fitting, Cold Drawn Steel & Nylon Fastener for 15mm+ Board
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2163 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Alias: | Eccentric Cam Fitting Connector (reflecting Common Industry Terms) | Material Composition: | Cold-Drawn Carbon Steel + Nylon |
|---|---|---|---|
| Expansion Principle: | Screw Tightening Expands Nylon To Lock In Holes | Color Code: | Cyan Blue For Easy Assembly Identification |
| Load-Bearing Capacity: | Torque Up To 12N | MOQ: | 10000pcs |
| Lead Time: | 15 Days | Service Scope: | OEM/ODM Only For B2B Clients |
| Highlight: | Minifix connecting bolt 32mm,Cold drawn steel furniture fastener,Nylon expanding nut for 15mm board |
||
Product Description
JH-2163 Furniture Connecting Bolt & Expanding Nut, 32mm Minifix Cam Lock Fitting, Cold Drawn Steel & Nylon Fastener for 15mm+ Board
Product Overview
Enhance your furniture assembly with the JH-2163, a premium combination fitting designed for robust and reliable concealed joints. This set includes a metal connecting bolt for the Minifix or cam lock system and a matching nylon expanding nut, providing a strong, secure, and clean finish for flat-pack furniture, cabinets, and wardrobes.
Key Features
- High-Strength Construction: The bolt is made from durable cold-drawn carbon steel with blue zinc plating, offering excellent corrosion resistance and strength. The matching expandable nut is manufactured from tough blue-grey nylon.
- Reliable & Concealed Fastening: Creates sturdy, invisible joints between panels. The metal bolt screws into one board, while the nylon nut expands securely within a pre-drilled hole in the adjoining panel, locking into the cam.
- Engineered for Performance: Designed to withstand assembly and use with a torque rating of up to 12N. The zinc plating provides enhanced protection, passing a standard salt spray test.
- Perfect Fit for Modern Panels: Ideal for connecting boards with a minimum thickness of 15mm, making it suitable for most contemporary cabinet and furniture panels.
- Quality Assurance from JINHAN: As an OEM/ODM specialist, we are proud to be a long-term strategic partner to many top-tier high-end custom cabinet and wardrobe manufacturers in China. Our production is ISO 9001:2015 certified, and this product is backed by relevant SGS test reports, ensuring consistent quality for your projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JH-2163 |
| Product Type | Cam Lock Connector (Minifix) Set |
| Components | Steel Bolt + Nylon Expanding Nut |
| Bolt Material | Cold Drawn Carbon Steel |
| Nut Material | Nylon |
| Bolt Finish | Blue Zinc Plated |
| Nut Color | Blue-Grey |
| Total Length | 32 mm |
| Max Torque | Up to 12N |
| Salt Spray Test | 24H / 48H |
| Min. Panel Thickness | 15 mm |
Documentation & Media
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
