Jh-2170 Oem Customizable Furniture Panel Connector | Cold-Drawn Carbon Steel, 32mm Length, Blue Zinc Plated
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Common Aliases: | Cam Lock Connecting Rod, Cam Fastener Screw, Cam Fitting Bolt | Core Material: | Cold Drawn Carbon Steel (CD Carbon Steel) |
|---|---|---|---|
| Finish & Color: | Electroplated Blue Zinc (Characteristic Blue Appearance) | Key Performance: | High Tensile Strength, Corrosion Resistance |
| Primary Application: | Connecting Panel Furniture Using Eccentric Cam Systems | Panel Compatibility: | Designed For Particleboard, MDF, Plywood ≥15mm |
| Connection Principle: | Screws Into Pre-drilled Hole In Secondary Panel; Secures Via Rotation Within The Eccentric Cam In The Primary Panel. | Export Standard Packaging: | Bulk Packed In Strong Cartons / Master Cartons Per Customer Requirement (e.g., 1000pcs/bag, 20 Bags/ctn). |
| Highlight: | Minifix furniture panel connector,Blue zinc plated connecting bolt,32mm cold-drawn carbon steel bolt |
||
Product Description

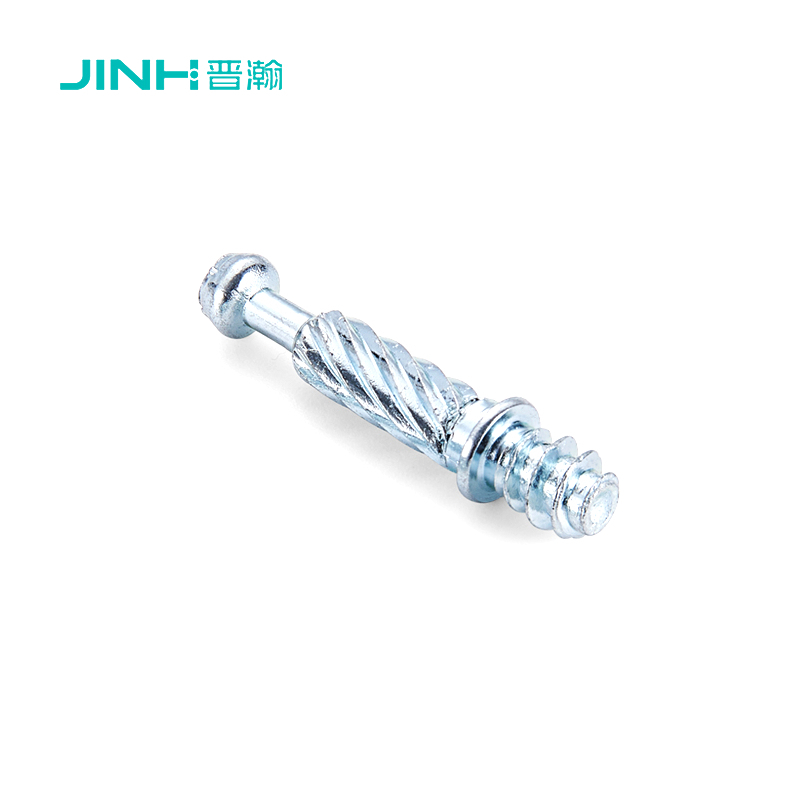

JH-2170 OEM Customizable Furniture Panel Connector | Cold-Drawn Carbon Steel, 32mm Length, Blue Zinc Plated
Product Description
The JH-2170 eccentric connector screw rod is engineered for seamless and durable furniture assembly, specifically designed for use with cam locks in connecting two panels. Ideal for flat-pack furniture, this screw ensures a secure and stable connection while enhancing overall structural integrity.
Key Features
- Made from high-quality cold-drawn carbon steel for superior strength and durability.
- Blue zinc plating offers enhanced corrosion resistance, passing 24H/48H salt spray tests.
- Compatible with panels thicker than 15mm, ensuring versatility for various furniture designs.
- Supports torque up to 12N, providing reliable fastening without stripping or loosening.
- Precision-engineered threads for smooth and easy installation.
Specifications
| Parameter | Value |
|---|---|
| Model | JH-2170 |
| Total Length | 32mm |
| Material | Cold-Drawn Carbon Steel |
| Surface Treatment | Blue Zinc Electroplating |
| Max Torque | Up to 12N |
| Min Panel Thickness | 15mm+ |
| Salt Spray Test | 24H/48H |
Our products are manufactured under ISO 9001:2015 certification and backed by SGS test reports. As a trusted OEM/ODM partner, we proudly serve top-tier cabinet and wardrobe customizers globally, ensuring premium quality and consistent performance.
