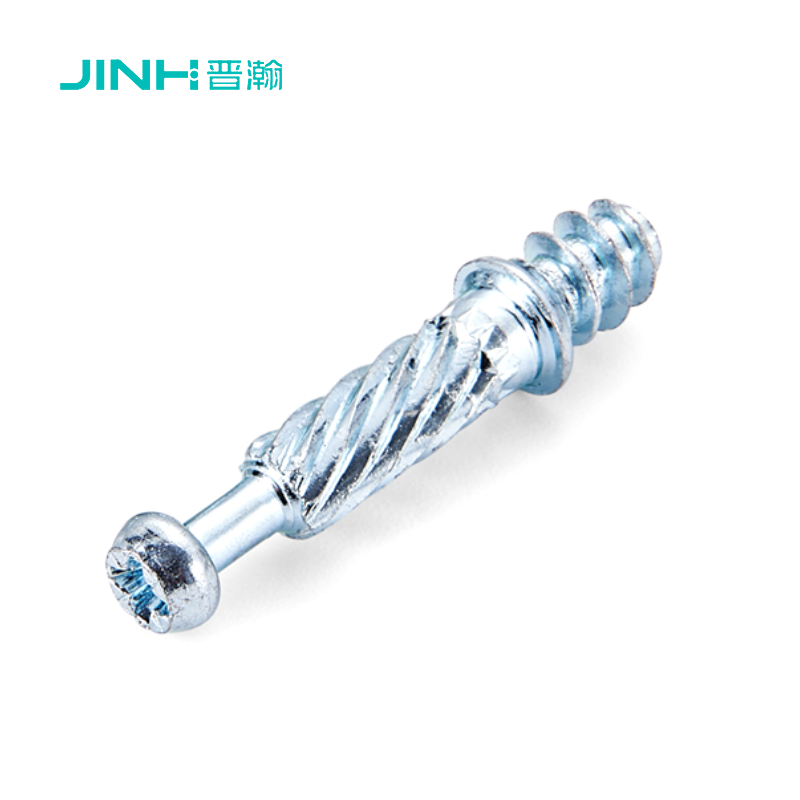

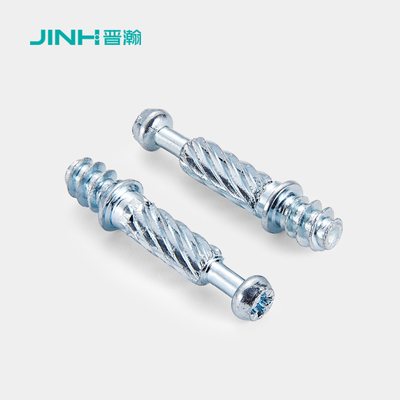

JH-2170 Electroplated Blue Zinc Finish Eccentric Connecting Screw 32mm Cold Drawn Steel Bolt for 15mm Furniture Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Common Aliases: | Cam Lock Connecting Rod, Cam Fastener Screw, Cam Fitting Bolt | Core Material: | Cold Drawn Carbon Steel (CD Carbon Steel) |
|---|---|---|---|
| Finish & Color: | Electroplated Blue Zinc (Characteristic Blue Appearance) | Key Performance: | High Tensile Strength, Corrosion Resistance |
| Primary Application: | Connecting Panel Furniture Using Eccentric Cam Systems | Connection Principle: | Screws Into Pre-drilled Hole In Secondary Panel; Secures Via Rotation Within The Eccentric Cam In The Primary Panel. |
| Panel Compatibility: | Designed For Particleboard, MDF, Plywood ≥15mm | Export Standard Packaging: | Bulk Packed In Strong Cartons / Master Cartons Per Customer Requirement (e.g., 1000pcs/bag, 20 Bags/ctn). |
| Highlight: | Electroplated Eccentric Connecting Screw,32mm Cold Drawn Steel Bolt,Zinc Finish Eccentric Connecting Screw |
||
Product Description
Product Description:
The JH-2170 Eccentric Connecting Screw is an essential hardware component designed for robust and concealed assembly in flat-pack furniture, particularly cabinets and wardrobes. This high-strength bolt forms the critical link between panels, working seamlessly with the eccentric cam to create tight, durable joints. Manufactured by Jinhan, a trusted leader in OEM/ODM furniture hardware solutions, this screw meets stringent international quality standards.
Key Features:
- Engineered for Strength: Constructed from high-grade cold drawn carbon steel for superior tensile strength and resistance to stripping.
- Enhanced Corrosion Resistance: Features blue zinc plating (electroplated) surface treatment, providing a protective barrier against rust and tarnishing, essential for furniture longevity.
- Optimal Length & Compatibility: With a 32mm total length, it is ideally suited for connecting panels with a minimum thickness of 15mm, a common standard in modern flat-pack furniture.
- Reliable Performance: Designed to withstand assembly torques up to 12 Newton-meters (N.m), ensuring a secure and wobble-free connection.
- Salt Spray Protection: Undergoes salt spray testing (24H/48H), demonstrating its effectiveness in resisting corrosion in challenging environments.
- Concealed Connection: Enables the popular hidden fastener design, contributing to a clean and aesthetically pleasing furniture finish.
Technical Specifications:
Jinhan Hardware operates under the stringent ISO 9001:2015 certified quality management system, guaranteeing consistent product quality and reliable performance for every batch. This JH-2170 Eccentric Connecting Screw is backed by independent SGS test certificates, validating its adherence to claimed specifications including strength and corrosion resistance.
As a long-term strategic partner to numerous leading high-end kitchen cabinet and wardrobe customization enterprises within China, Jinhan understands the exacting requirements of professional furniture manufacturing. We deliver OEM/ODM hardware solutions trusted by global brands for assembly efficiency and enduring quality.
