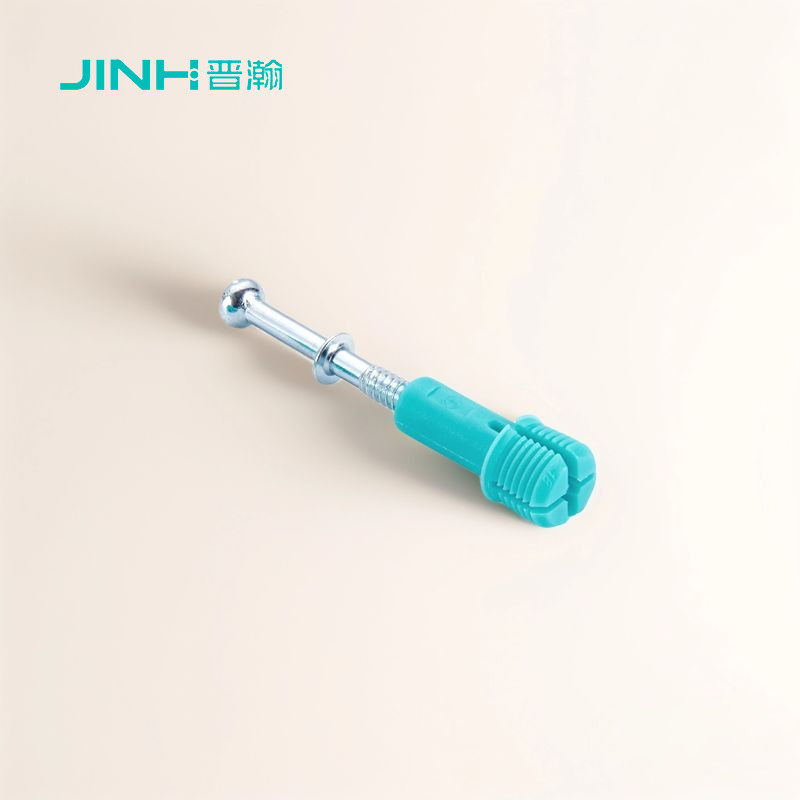

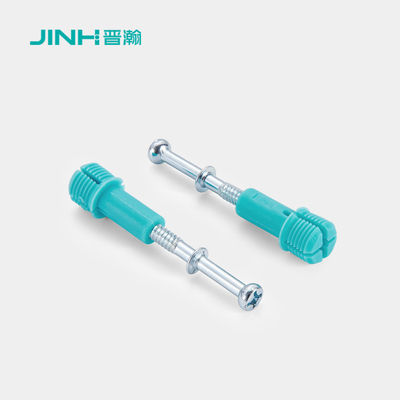

Jh-2063 Cold-Drawn Cam Dowel Screw 41mm Durable Knockdown Furniture Connector For Flat-Pack Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | SGS |
| Model Number: | JH-2063 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Zinc Plated | Material: | Cold Rolled Steel+nylon |
|---|---|---|---|
| Torque: | 12N | Logo: | Available |
| Panel Suitable: | For 15+MM Thickness Panel | Center Hole Distance: | 34mm |
| Total Length: | 41mm | Product Type: | Furniture Connector |
| Highlight: | Durable Knockdown Furniture Connector,41mm Cold-Drawn Cam Dowel Screw,Flat-Pack Assembly Cam Dowel Screw |
||
Product Description
Product Description:
The JINHAN JH-2063 Tri-in-One Quick-Install Fastener Connector (with Expansion Bolt) + Minifix Spreading Bolt is a high-strength, precision-engineered hardware solution designed for seamless and durable furniture assembly. Crafted from cold-rolled carbon steel and reinforced with a nylon-based plastic expansion bolt, this connector ensures robust performance and a clean, hidden installation. Ideal for use with Minifix cam locks, it is tailored for 15mm+ thick panels in cabinetry, wardrobes, storage units, and more.
Key Features
Premium Material: Cold-rolled carbon steel construction offers superior strength and durability compared to conventional zinc alloy alternatives, ensuring long-term reliability.
Aesthetic Design: Hidden installation mechanism enhances visual appeal by eliminating exposed hardware.
Nylon Expansion Bolt: Four-flange design provides exceptional grip and stability in various panel materials.
Corrosion Resistance: Zinc-plated surface treatment protects against rust and extends product lifespan.
Optimized Compatibility: Works seamlessly with Minifix cam locks for quick, tool-free assembly.
Compact Dimensions: 41mm length ensures versatility across furniture applications without compromising structural integrity.
Applications
Cabinetry: Securely joins panels in kitchen cabinets, drawers, and modular systems.
Storage Solutions: Ideal for assembling wardrobes, shelving units, and closet organizers.
Commercial & Residential Furniture: Suitable for heavy-duty storage systems, office furniture, and multipurpose fixtures requiring concealed, high-strength fastening.
DIY Projects: Simplifies installation for hobbyists and professionals working with 15mm or thicker engineered wood, particleboard, or MDF panels.
Engineered for strength, aesthetics, and ease of use, the JINHAN JH-2063 redefines durability and precision in modern furniture assembly.
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM | Available |
| ODM | Available |

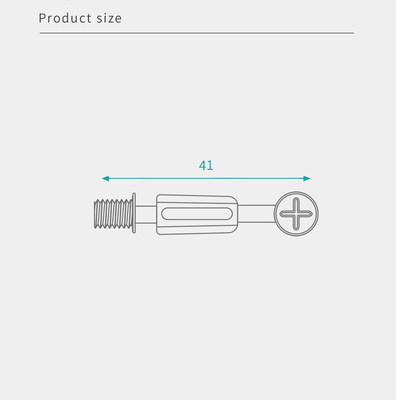

| Length | 41mm |
| Center hold distance | 34mm |
| Dowel | Nylon material, with a four-lobe design |
| Torque | 12N+ |
| Finish | Blue Zinc Plated |
| Assemble | Easy |
| Salt Spray Test | 24H/48H |
