Modular Furniture Carbon Steel Minifix Cam Lock 13.5mm Height Panel Connector
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | JINHAN |
| Certification: | SGS |
| Model Number: | JH-1043 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 Pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | by carton |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Application: | Modular Furniture Systems | Salt Spray Test: | 24H/48H |
|---|---|---|---|
| Height: | 13.5mm | Panel Supported: | 15-18mm Thickness |
| Finish: | Black Nickel Plated | Diameter: | 12mm |
| OEM/ODM: | Available | ||
| Highlight: | Carbon Steel Minifix Cam Lock,13.5mm Minifix Cam Lock,Modular Furniture Minifix Cam Lock |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

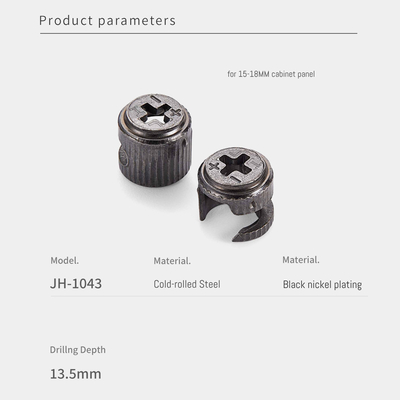

Technical Parameters:
| Height | 13.5mm |
| Salt Spray Test | 24H/48H |
| Diameter | 12mm |
| Torque | Up To 12N |
| ODM | Available |
| Finish | Black Nickel Plated |
| Material | Cold Rolled Steel |
| Logo | Available |
| Panel supported | 15-18mm Thickness |
Packing Method:
3000/4000/5000pcs per carton or as per your requirements.
Product Description:

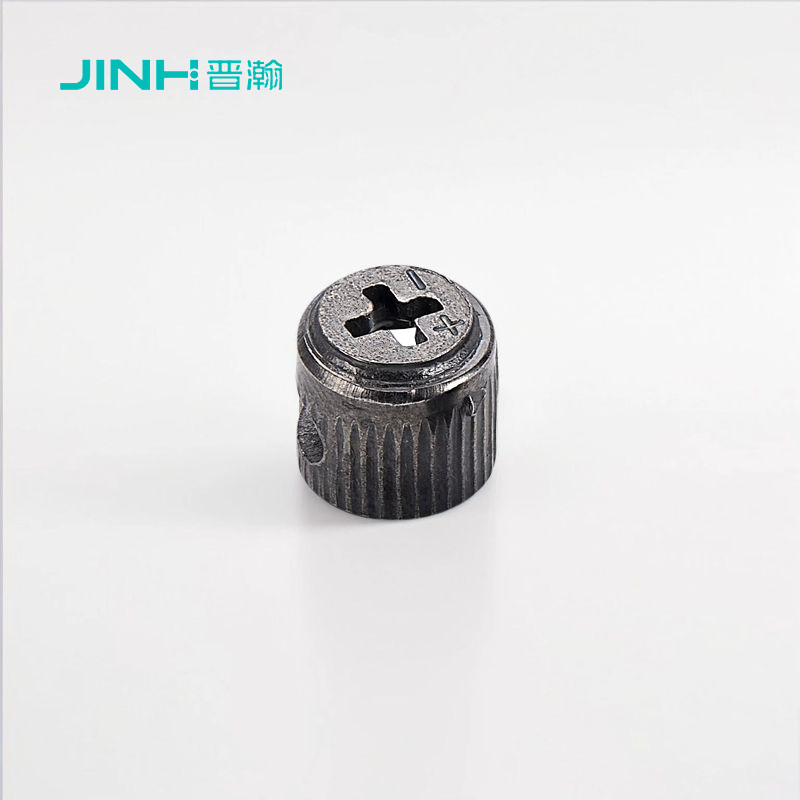

The Minifix Cam Lock (Item No.: JH-1043) is a robust and reliable fastening solution designed for the assembly of panel furniture. Constructed from cold-drawn carbon steel, this cam lock offers exceptional durability and strength. With a diameter of 12mm and a height of 13.5mm, it fits seamlessly into furniture designs where space efficiency is crucial. The surface is finished with an electroplated black nickel coating, providing not only an elegant appearance but also enhanced corrosion resistance.
Key Features
- Material & Finish: Crafted from cold-drawn carbon steel, the Minifix Cam Lock boasts high tensile strength and wear resistance. The electroplated black nickel finish enhances its aesthetic appeal while offering superior protection against rust and corrosion.
- Design: The cam's cylindrical surface features a unique design with evenly distributed three-dimensional vertical textures. This design significantly increases the friction between the cam and the furniture panels, ensuring a secure and stable connection.
- Ease of Use: Compatible with Minifix connecting bolts, these cam locks are easy to install and remove, making furniture assembly and disassembly quick and straightforward.
- Size & Compatibility: With a diameter of 12mm and a height of 13.5mm, the Minifix Cam Lock is ideally suited for furniture panels with thicknesses ranging from 15mm to 18mm, ensuring a perfect fit and a strong hold.
Applications
The Minifix Cam Lock is primarily used in the furniture industry for connecting and assembling wooden or composite panels in various types of board furniture. It is particularly well-suited for:
- Cabinets and Wardrobes: Enhancing the structural integrity of cabinet and wardrobe frames, ensuring that doors and drawers remain securely attached over time.
- Shelving Units: Providing a strong and durable connection between shelves and support structures, allowing for heavy loads without compromising stability.
- Tables and Desks: Facilitating the assembly of tabletops and legs, ensuring a solid and long-lasting bond.
- Office Furniture: Ideal for the construction of office desks, filing cabinets, and other modular office furniture systems.
