32mm Length Furniture Connecting Fitting Cam Connector Screw for Flat-Pack Furniture Assembly and Repair
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2170 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Blue Zinc Plated | Material: | Cold Rolled Steel |
|---|---|---|---|
| Torque: | 12N | Length: | 32mm |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | Furniture Repair |
| Application: | Desk Adjustments | Product Type: | Furniture Connecting Fitting |
| Highlight: | 32mm Length Cam Connector Screw,Flat-Pack Furniture Cam Connector Screw,furniture connecting fitting screws |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM/ODM | Available |
| Material | Cold Rolled Steel |
| Length | 32mm |
| Torque | Up to 12N |
| Application | Furniture Repair: For repairing or reinforcing existing furniture, Minifix Spreading Bolts can be used to tighten loose joints and restore structural stability, extending the lifespan of the piece.and more. |
| Usage | Enhancing furniture stability and durability and much more. |
| Finish | Blue Zinc Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Description:

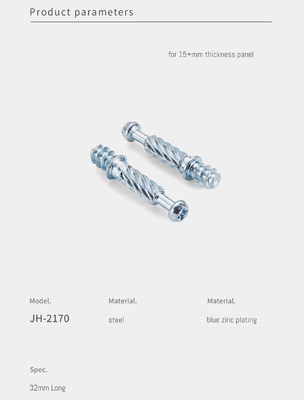

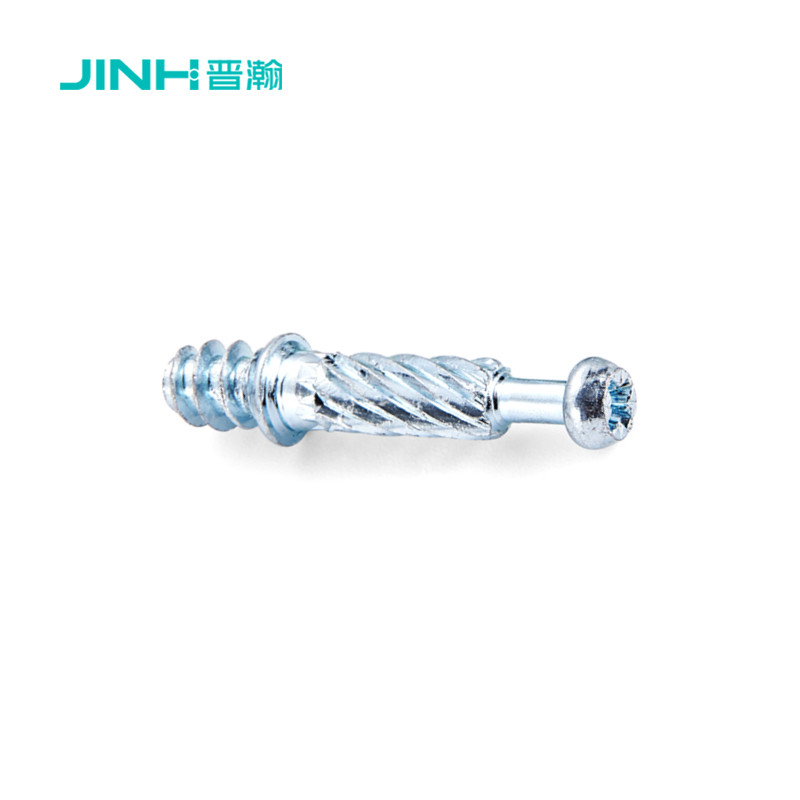

The JH-2170 Cam Connector Screw, also known as a minifix bolt without a sleeve and dowel, is designed for the assembly of panel furniture. With an overall length of 32mm and a hole spacing of 25mm, this connector screw is specifically tailored for joining and assembling furniture panels that are 15mm thick or more. Constructed from cold-drawn carbon steel, the JH-2170 offers robust strength and durability. Its surface is finished with an environmentally-friendly blue zinc electroplating, providing excellent corrosion resistance while maintaining an aesthetic appearance. The unique three-dimensional twisted texture on the metal rod enhances grip and stability, ensuring secure connections.
Key Features
- Material & Finish: Made from high-quality cold-drawn carbon steel, the JH-2170 boasts superior mechanical properties. The electroplated blue zinc finish not only adds to its durability but also ensures it remains eco-friendly.
- Design: Featuring a distinctive three-dimensional twisted texture, the rod improves the holding power and reduces the risk of loosening over time, even under dynamic loads.

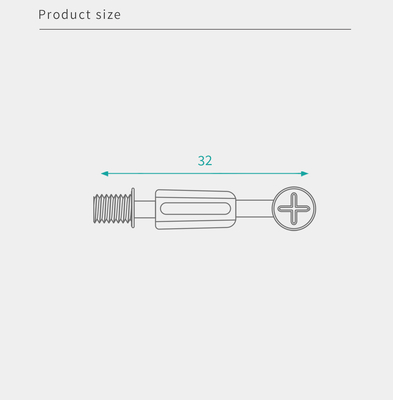

- Dimensions: With a total length of 32mm and a hole spacing of 25mm, the JH-2170 is precisely engineered to fit into standard furniture assembly requirements.
- Thread Type: Equipped with an automatic rod and self-tapping threads, the JH-2170 can easily create its own thread in pre-drilled holes, simplifying the installation process and reducing assembly time.
- Versatility: Suitable for use in various types of furniture where strong, reliable connections are needed, particularly in thicker panels.
Applications
The JH-2170 Cam Connector Screw is ideal for a wide range of applications in the furniture manufacturing industry, especially for:

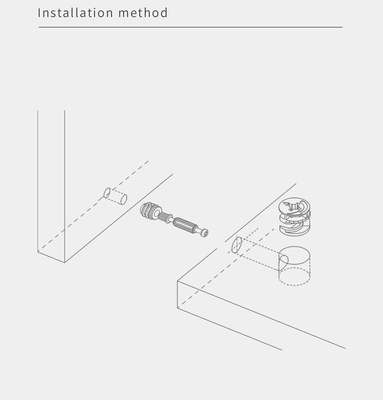

- Panel Furniture Assembly: Perfect for connecting and assembling thick panels (15mm+) in desks, cabinets, shelves, and other heavy-duty furniture items.
- Modular Furniture Construction: Facilitates the creation of modular furniture systems that require frequent disassembly and reassembly.
- DIY Projects: Handy for DIY enthusiasts looking for sturdy and efficient fasteners for their custom furniture projects.
- Office and Commercial Furniture: Essential for the construction of durable office and commercial furniture, where reliability and longevity are paramount.
