32mm Cabinet Furniture Minifix Cam Bolt, Furniture Hardware For Flat Packed Furniture
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2169 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Black Nickel Plated | Material: | Cold Rolled Steel |
|---|---|---|---|
| Length: | 32mm | Logo: | Available |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | DIY Projects |
| Application: | Drawer Construction | Product Type: | Furniture Connector |
| Highlight: | Flat Packed Furniture Minifix Cam Bolt,32mm Minifix Cam Bolt,Cabinet Furniture Minifix Cam Bolt |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

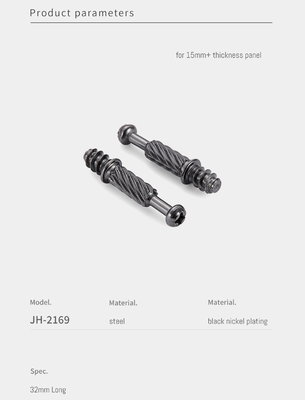

Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM/ODM | Available |
| Material | Cold Rolled Steel |
| Length | 32mm |
| Torque | Up to 12N |
| Application | DIY Projects: In various DIY furniture projects, such as building tables, benches, or storage units, Minifix Spreading Bolts are a reliable choice for joining wood or other materials securely.and more. |
| Usage | Repairing furniture joints, and much more. |
| Finish | Black Nickel Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Description:

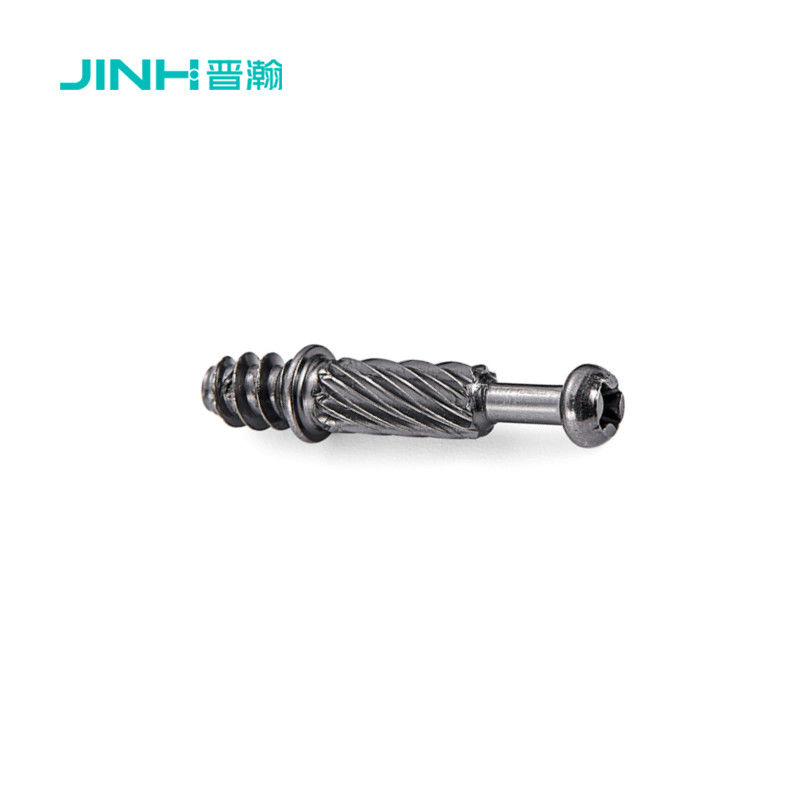

The JH-2169 Minifix Cam Bolt is a precision-engineered fastener designed for the assembly of cabinet furniture and other wooden panel constructions. With a total length of 32mm and a hole spacing of 25mm, this component is specifically tailored to connect and secure panels that are 15mm or thicker, ensuring robust and reliable connections in furniture manufacturing.
Key Features
- Material: Crafted from cold-drawn carbon steel, providing exceptional strength and durability.
- Surface Treatment: Electroplated with black nickel, offering an elegant finish and superior corrosion resistance.
- Surface Texture: The metal rod features a three-dimensional twisted pattern, enhancing grip and preventing slippage during installation.
- Thread Type: Equipped with a self-tapping thread, allowing for easy insertion into pre-drilled holes without the need for additional tapping processes.

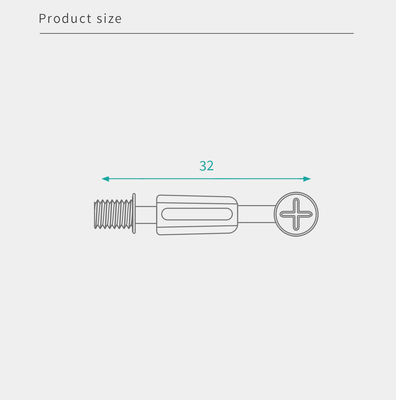

- Dimensions: A total length of 32mm and a precise hole spacing of 25mm, making it compatible with standard furniture construction specifications.
Applications

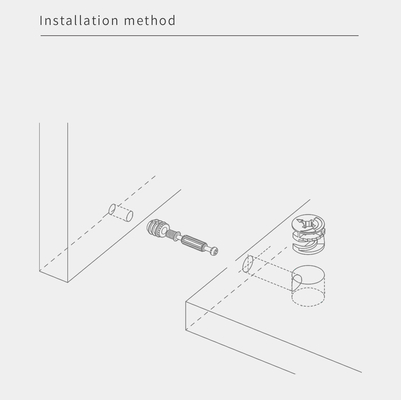

The JH-2169 Minifix Cam Bolt is widely used in the furniture industry for connecting and assembling various types of cabinet furniture. It is particularly suitable for joining panels in bookcases, wardrobes, kitchen cabinets, and office furniture, where a strong, invisible connection is required. Its design ensures that the fastener can be easily inserted and tightened, providing a secure fit that maintains the integrity and aesthetic appeal of the finished product. Ideal for use with panels that are 15mm or thicker, this cam bolt is a versatile solution for modern furniture assembly needs.
