40mm Customized Minifix Connecting Bolts, Flat Pack Furniture Fitting For Rta Furniture
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2168 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000 Pieces |
|---|---|
| Price: | US$ 0.001-0.1/Piece |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Finish: | Black Nickel Plated | Material: | Cold Rolled Steel |
|---|---|---|---|
| Torque: | 12N | Length: | 40mm |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | Custom Cabinetry |
| Application: | Quick Disassembly | Product Type: | Furniture Fixing |
| Highlight: | Rta Furniture Minifix Connecting Bolts |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Technical Parameters:

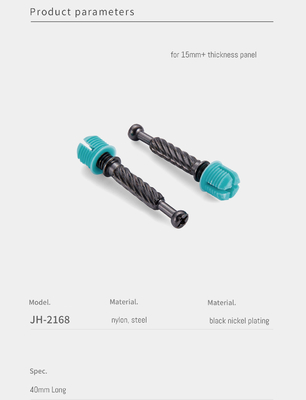

| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM/ODM | Available |
| Material | Cold Rolled Steel + Nylon |

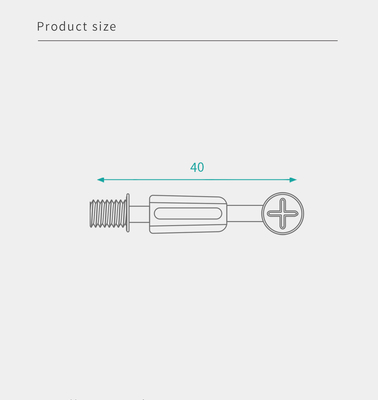

| Length | 40mm |
| Torque | Up to 12N |
| Center hold distance | 33mm |
| Usage | for panel type furnitures |
| Finish | Black Nickel Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Description:

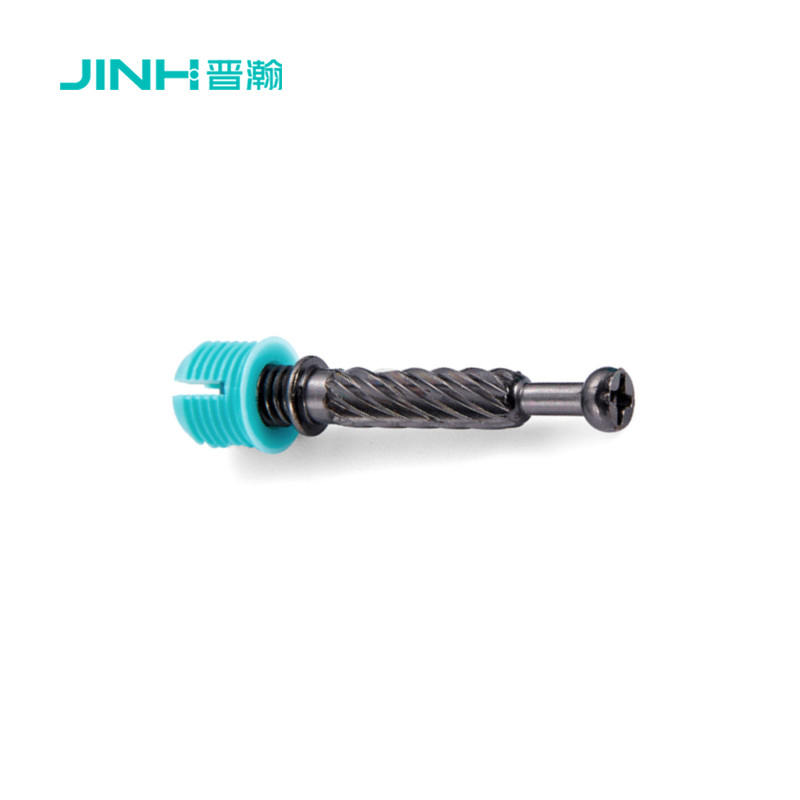

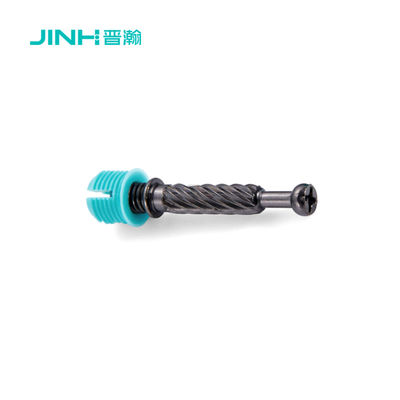

The JH-2168 Customized Minifix Connecting Bolt is a high-quality fastener designed for the assembly of modular furniture. This innovative solution combines a precision-engineered carbon steel shaft with a nylon spreading dowel, creating a robust and reliable connection system. The total length of the bolt is 40mm, making it suitable for furniture panels that are 15mm thick or more. The unique design ensures a strong grip and prevents the bolt from loosening over time, even under dynamic loading conditions.
Key Features
- Material Composition: The metal rod is crafted from cold-drawn carbon steel, providing exceptional strength and durability. The plastic expansion component is made from nylon, featuring a four-lobe design that facilitates easy expansion and secure anchoring.
- Surface Treatment: The metal rod undergoes an electroplating process to achieve a black nickel finish, enhancing corrosion resistance and aesthetic appeal.
- Surface Texture: The shaft features a three-dimensional twisted pattern texture, which significantly increases friction and enhances the holding power within the dowel.
- Design Advantage: The threaded metal rod is inserted into and expands the nylon spreading dowel, ensuring a tight fit and superior load-bearing capacity. This design minimizes the risk of the bolt coming loose, even when subjected to repeated stress.

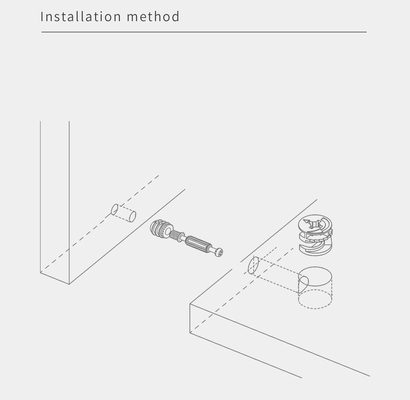

- Ease of Installation: The Minifix bolt's design allows for quick and simple installation without the need for specialized tools, streamlining the furniture assembly process.
Applications
The JH-2168 Customized Minifix Connecting Bolt is ideal for use in the construction and assembly of board-type furniture, such as cabinets, shelves, desks, and bed frames. Its enhanced grip and stability make it particularly well-suited for applications where the furniture components are subject to frequent movement or heavy loads. Whether for home furnishings or commercial settings, this fastener provides a dependable and durable connection that ensures the longevity and integrity of the assembled products.
