40mm Nickel Plated Minifix Connecting Bolts, Furniture Fitting For Knockdown Furniture
Knockdown Furniture Minifix Connecting Bolts
,Furniture Fitting Minifix Connecting Bolts
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM/ODM | Available |
| Material | Cold Rolled Steel |
| Length | 40mm |
| Torque | Up to 12N |
| Center hold distance | 33mm |
| Usage | Assembling display cases. |
| Finish | Black Nickel Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Description:

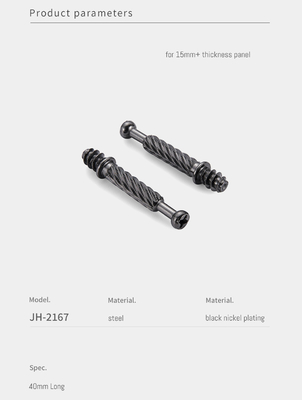

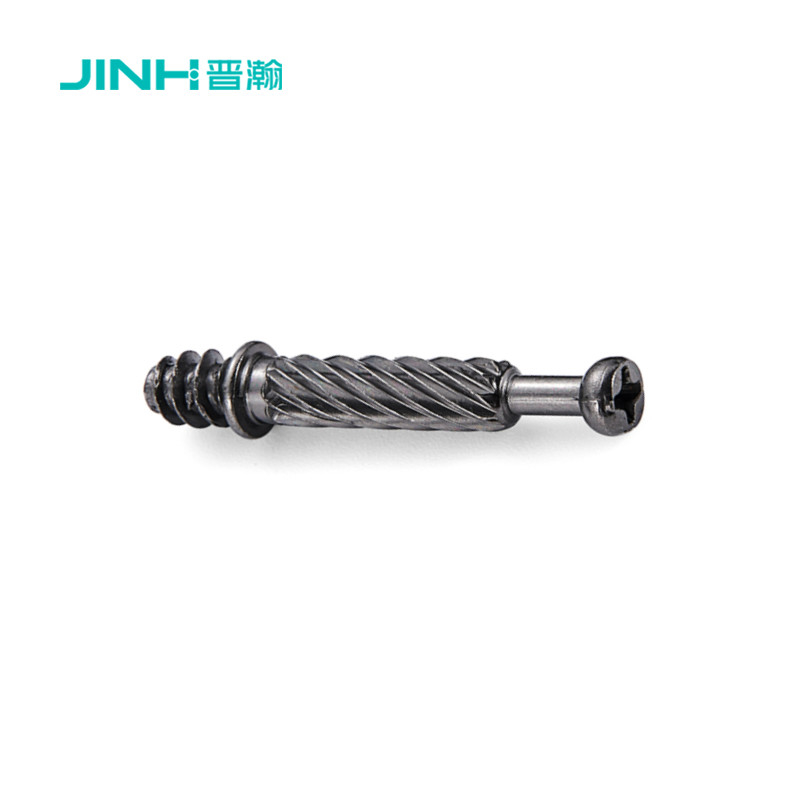

Item No. JH-2167 is a nickel-plated Minifix connecting bolt designed for the assembly and connection of board materials, particularly in furniture manufacturing. With an overall length of 40mm and a hole-to-hole distance of 33mm, this bolt is crafted from cold-drawn carbon steel and features an electroplated black nickel finish. The self-tapping rod is equipped with a three-dimensional twisted texture that enhances its grip and ensures a secure fastening.
Key Features
- Material: Constructed from high-quality cold-drawn carbon steel, ensuring durability and strength.
- Surface Treatment: Electroplated with a black nickel coating to provide corrosion resistance and aesthetic appeal.

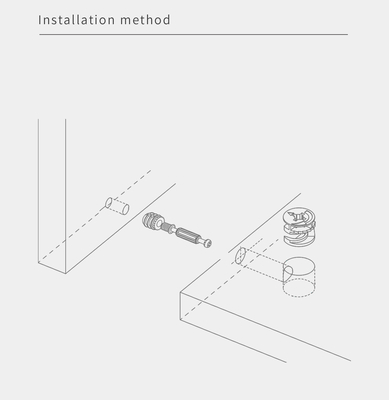

- Design: The self-tapping screw thread allows for direct insertion into various types of panels using just a screwdriver, making installation quick and efficient.
- Texture: A distinctive three-dimensional twisted pattern on the metal rod increases holding power and reduces the risk of loosening over time.

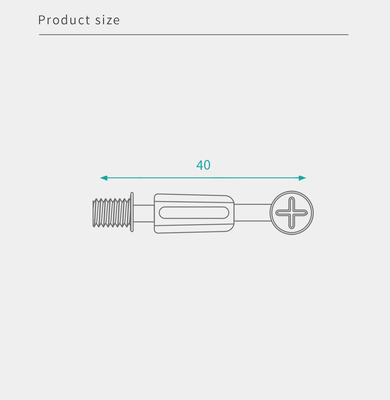

- Dimensions: With a total length of 40mm and a spacing between holes of 33mm, it is well-suited for thicker board materials, typically those exceeding 15mm in thickness.
Applications
The JH-2167 nickel-plated Minifix connecting bolt is ideal for the construction and assembly of modular furniture, particularly where robust and reliable connections are required. It is especially useful for joining boards that are at least 15mm thick, such as those used in cabinets, shelving units, and other heavy-duty furniture pieces. Its design and features make it a preferred choice for manufacturers looking to ensure long-lasting and stable assemblies without the need for pre-drilling or additional hardware.
