41mm Cam Bolt Screw Furniture Panel Connector Furniture Hardware For Modular Furniture
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2162 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Brand Name: | JINHAN | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Torque: | 12N | Cam Material: | COLD ROLLED STEEL |
| Length: | 41mm | Usage: | Universal Connection System |
| Application: | Hidden Fastening Solutions | Packing & Delivery: | 3000/4000/5000pcs/ctn Or Custom |
| Highlight: | Modular Furniture Cam Bolt Screw,41mm Cam Bolt Screw,Furniture Panel Connector Furniture Hardware |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

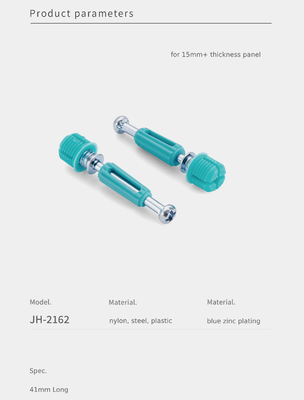

Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts, Cam Bolt Screw |
| OEM/ODM | Available |
| Material | Cold Rolled Steel + Nylon |

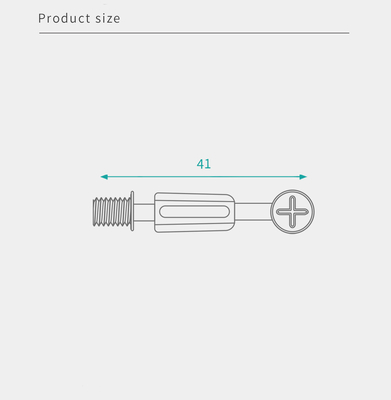

| Length | 41mm |
| Torque | Up to 12N |
| Center hold distance | 34mm |
| Usage | Building custom shelving units. |
| Finish | Blue Zinc Plated |
| Panel supported | 15+mm Thickness |
| Salt Spray Test | 24H/48H |
Product Description:

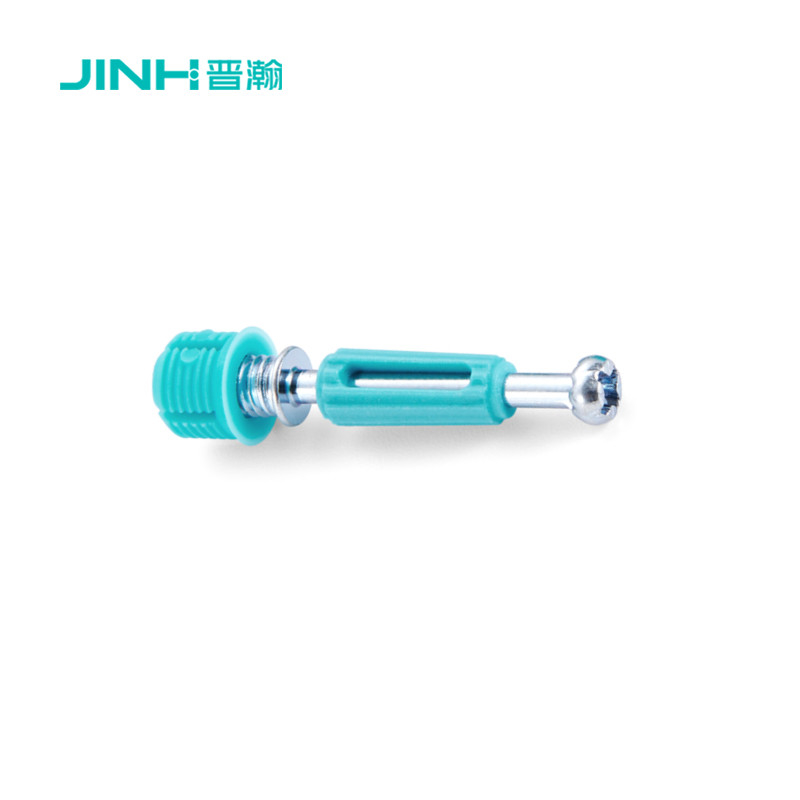

The JH-2162 Cam Bolt Screw, also known as the Minifix Bolt, is a specialized fastener designed for robust and secure connections in furniture assembly. With an overall length of 41mm, this fastener is meticulously crafted from cold-drawn carbon steel, ensuring durability and strength. The innovative design includes a nylon spreading dowel with a quad-lug configuration for efficient expansion, paired with a PP plastic sleeve featuring longitudinal grooves to enhance grip and stability. The surface of the metal rod undergoes eco-friendly blue zinc electroplating, providing both aesthetic appeal and corrosion resistance.
Key Features
- Material Strength: Constructed from cold-drawn carbon steel, the JH-2162 offers superior tensile strength and resistance to deformation under load.
- Nylon Spreading Dowel: The four-lug design of the nylon dowel ensures uniform expansion, creating a tight fit and strong hold within the drilled hole.
- PP Plastic Sleeve: The sleeve's longitudinal grooves improve friction between the screw and the dowel, further securing the connection and preventing slippage.
- Surface Treatment: An environmentally friendly blue zinc electroplating process not only enhances the appearance but also protects against rust and corrosion.
- Enhanced Grip and Stability: The combination of the metal rod's threading with the expanding dowel mechanism provides exceptional holding power, making it less likely to come loose over time.
Applications
The JH-2162 Cam Bolt Screw is ideally suited for the assembly and connection of panel boards in furniture construction, particularly for pieces where panels are 15mm thick or more. It is widely used in the manufacturing of:
- Cabinets and Shelving Units: Ensuring sturdy joints that can support heavy loads without compromising on aesthetics.
- Tables and Desks: Providing a secure and invisible method of attaching legs and supports to tabletops.
- Bed Frames and Wardrobes: Offering a reliable solution for connecting various components while maintaining structural integrity and longevity. This versatile fastener is a preferred choice for manufacturers looking to achieve durable and aesthetically pleasing furniture pieces.
