36mm Length High Precision Cam Bolt Screw, Cabinet Connector For Knockdown Furniture
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2160 |
| Document: | JINHAN FURNITURE CONNECTOR ...E .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Length: | 36mm |
|---|---|---|---|
| Brand Name: | JINHAN | Service: | OEM & ODM |
| Panel Supported: | For 15+MM Thickness Panel | Usage: | Carpentry And Cabinet Making |
| Application: | Quick Assembly Kits | Product Type: | Furniture Connector |
| Highlight: | Knockdown Furniture Cam Bolt Screw,Cabinet Connector For Knockdown Furniture,36mm Length Cam Bolt Screw |
||
Product Description
Product Details:
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

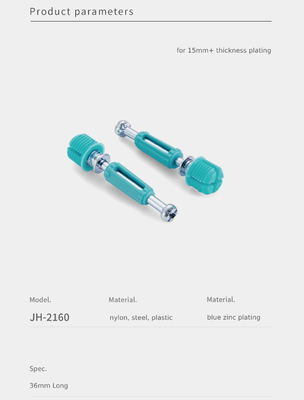

Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts / High Precision Cam Bolt Screw |
| OEM/ODM | Available |
| Material | Carbon Steel (Cold-Rolled) |

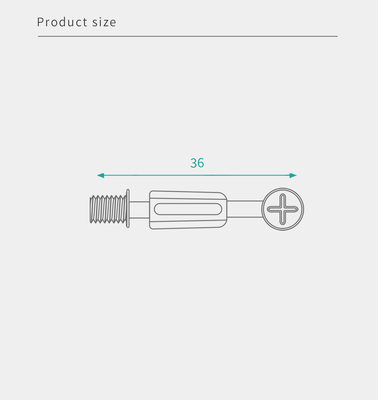

| Length | 36mm |
| Torque | Up to 12N |
| Center hole distance | 29mm |
| Usage | Creating modular storage systems. |
| Finish | Blue Zinc Plated |
| for panel | 15mm+ |
| Salt Spray Test | 24H/48H |
Product Description:

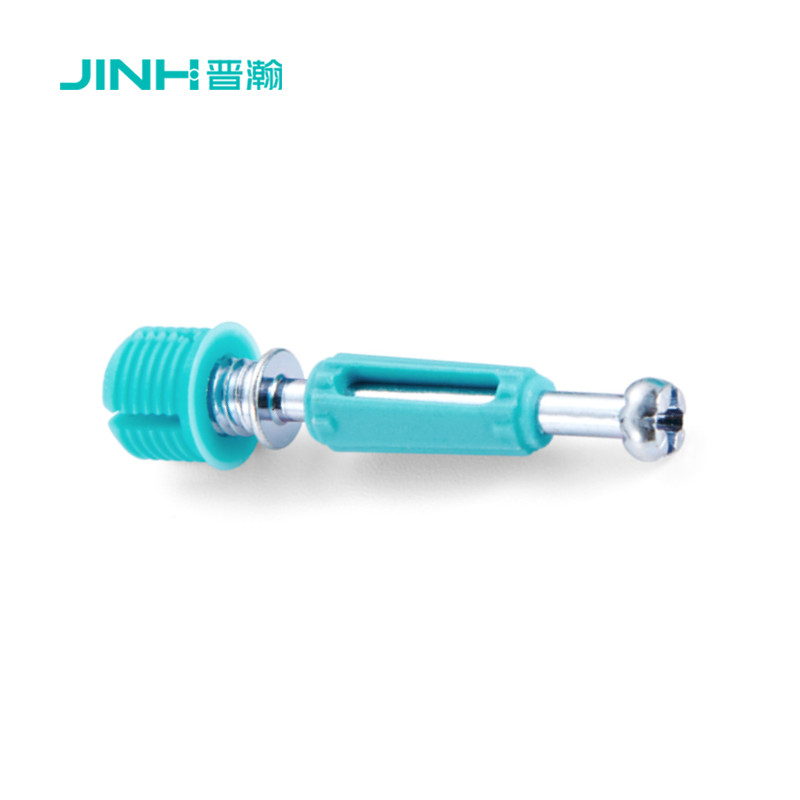

Item No. JH-2160, known as the High Precision Furniture Cam Screw (Minifix Bolt), is an advanced fastening solution designed for the assembly and connection of wooden panels in furniture construction. This cam screw features a total length of 36mm, with a cold-drawn carbon steel shaft that ensures superior strength and durability. The plastic threading dowel are made of nylon, specifically engineered to expand effectively upon installation, providing a secure hold. The surface of the screw undergoes environmentally friendly blue zinc electroplating, enhancing its resistance to corrosion and wear.
Key Features
- Material Excellence: The metal shaft is crafted from cold-drawn carbon steel, offering exceptional tensile strength and resistance to deformation. The nylon components include a 4-leaf design expansion dowel and a plastic sleeve with longitudinal grooves, which facilitate easy and robust expansion within the material.
- Enhanced Grip: The design allows the metal shaft to thread into and compress the nylon expansion bolt, creating a powerful grip that resists pull-out and ensures long-lasting stability.
- Surface Treatment: An eco-friendly blue zinc electroplating process not only improves the aesthetic appearance but also provides additional protection against environmental factors such as moisture and rust.

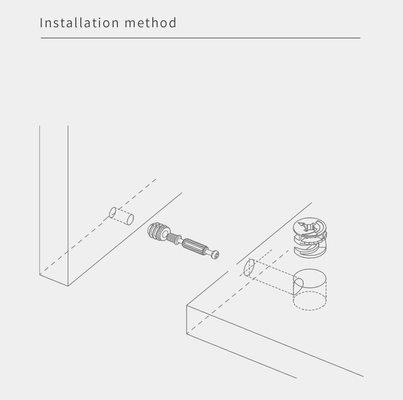

- Ease of Installation: The combination of the 4-leaf design and the grooved sleeve ensures smooth insertion and effective expansion, making the assembly process quick and straightforward.
Applications
The High Precision Furniture Cam Screw (Minifix Bolt) is ideally suited for connecting and assembling wooden panels in various types of furniture, particularly those with board thicknesses exceeding 15mm. Its robust design and strong holding power make it an excellent choice for applications where reliability and durability are paramount, including but not limited to:
- Cabinets and Shelving Units: Ensuring secure connections between side panels, shelves, and backboards.
- Tables and Desks: Providing a solid foundation for tabletops and supporting structures.
- Chairs and Sofas: Reinforcing joints and connections to maintain structural integrity over time.
- Custom Woodworking Projects: Offering a versatile fastening option for a wide range of DIY and professional woodworking tasks.
By choosing the High Precision Furniture Cam Screw (Minifix Bolt), you can achieve a professional finish in your furniture assembly projects, ensuring both strength and longevity.
