32mm Minifix Connecting Bolts, Cabinet Fitting For Flat Packed Furniture

Product Details:

JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf

Technical Parameters:

Product Overview:

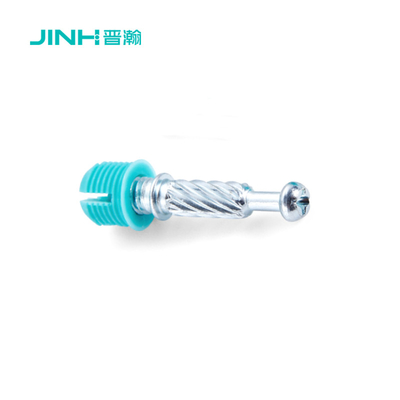

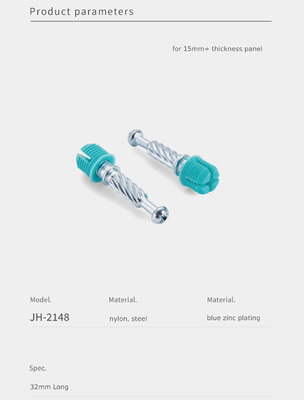

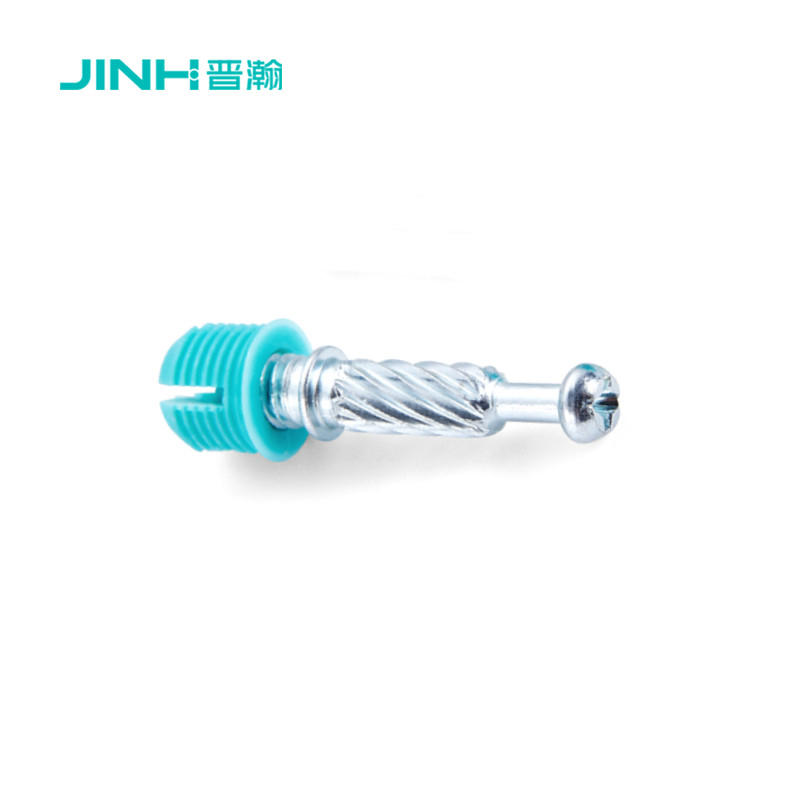

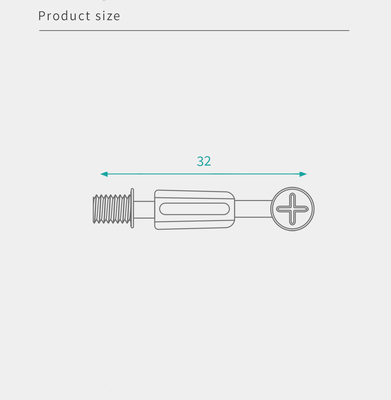

This Minifix Connecting Bolts are designed for secure and reliable connections in furniture assembly. With an overall length of 32mm, these bolts are crafted from cold-drawn carbon steel for the metal rod, which is enhanced with a 3D twisted texture on the surface for added grip. The plastic expansion dowel are made from nylon, featuring a four-petaled design that facilitates easy expansion. The entire product undergoes an environmentally friendly blue zinc plating process for a durable and aesthetic finish.

Key Features:

1. Material Composition: The metal rod is made from high-quality cold-drawn carbon steel, known for its strength and durability. The plastic expansion bolt is crafted from nylon, a material renowned for its resistance to wear and its ability to hold tight under pressure.

2. Surface Treatment: The environmentally friendly blue zinc electroplating not only provides a corrosion-resistant layer but also gives the product an attractive appearance.

3. Design Innovation: The 3D twisted texture on the metal rod and the four-petaled design of the nylon expansion dowel contribute to a stronger grip and secure fit, reducing the likelihood of the bolt becoming loose or detaching.

4. Strength and Security: The combination of the metal rod and the nylon expansion bolt creates a robust connection that is less likely to fail, even under stress.

Applications:

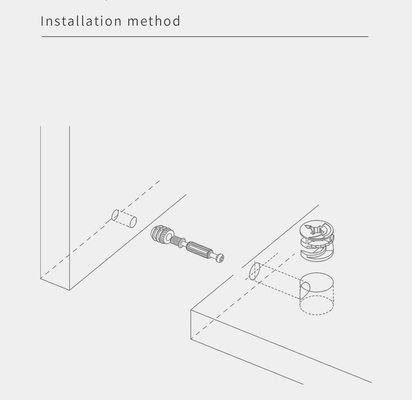

The Minifix Connecting Bolts are ideal for the connection and assembly of panel furniture, specifically designed for use with furniture panels that are 15mm or thicker. They are particularly suited for applications where a strong and secure bond is required, such as in the construction of cabinets, tables, and other pieces of furniture that need to withstand daily wear and tear. Their compact size and reliable performance make them a popular choice among furniture manufacturers and DIY enthusiasts alike.
