40mm Furniture Alignment Dowel
40mm Furniture Alignment Dowel
,Heavy Gauge Furniture Alignment Dowel
,40mm Cam Dowel Screw
Product Description:

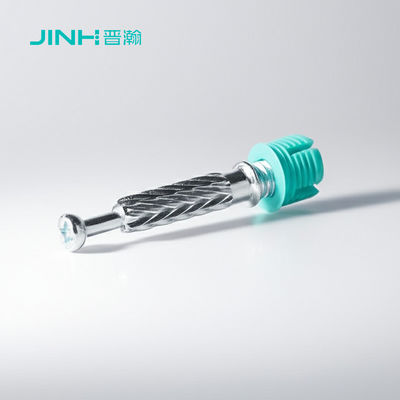

The JINHAN JH-2145 Minifix Spreading Bolt is a premium three-in-one fastening connector designed for secure and efficient assembly of furniture panels. Crafted from durable materials and engineered for compatibility with Minifix cam locks, this connector ensures reliable performance in cabinets, wardrobes, storage units, and other applications requiring panels with a thickness of 15mm or greater. Its hybrid design combines cold-rolled carbon steel and nylon for strength, stability, and corrosion resistance.
Key Features
Robust Material Composition: Made from cold-rolled carbon steel (cold-drawn for enhanced durability) and high-quality nylon, ensuring long-lasting structural integrity.
Aesthetic & Functional Design: Features a twisted floral pattern on the steel surface for a visually appealing finish, paired with a four-flange nylon expansion bolt for superior grip in pre-drilled holes.
Corrosion-Resistant Finish: Blue zinc-plated metal surface provides excellent protection against rust and wear.
Universal Compatibility: Optimized for use with Minifix cam locks, ideal for 15mm+ thick panels such as particleboard, MDF, or plywood.
Compact & Precise: 40mm length (JH-2145 model) ensures a compact yet sturdy connection solution.
Applications
Modular Furniture Assembly: Perfect for cabinets, wardrobes, shelving units, and storage systems requiring quick, tool-friendly installation.
Commercial & Residential Use: Suitable for both DIY projects and professional furniture manufacturing.
Multi-Material Panels: Compatible with laminated, melamine-coated, or veneered panels across home, office, or retail environments.
Custom Furniture Design: Enables flexible and invisible fastening for sleek, modern furniture aesthetics.
This versatile connector simplifies installation while delivering a secure, wobble-free joint, making it a go-to choice for durable and visually cohesive furniture construction.
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Product Details:
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | Minifix Spreading Bolts |
| OEM | Available |
| ODM | Available |
| Length | 40mm |
| Torque | Up to 12N |
| Application | Shelf Units : Used in various shelf units, these bolts help in connecting shelves to the side panels securely, ensuring stability and load-bearing capacity.and more. |
| Usage | Constructing display racks. |
| Finish | Blue Zinc Plated |
| Assemble | Easy |
| Salt Spray Test | 24H/48H |
