JH-2031 Minifix Connecting Bolt | 3-in-1 Cam Lock Fastener | 40mm Knurled Cold Rolled Steel | Concealed Fastening for Cabinets
Product Details:
| Place of Origin: | China |
| Brand Name: | JINHAN |
| Certification: | ISO 9001:2015 |
| Model Number: | JH-2031 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 5000000 Pieces per Month |
|
Detail Information |
|||
| Common Aliases: | Minifix Fastener, 3-Way Cam Dowel, Hidden Cabinet Bolt | Material Grade: | SPCC Cold Rolled Steel |
|---|---|---|---|
| Friction Index: | ISO 8295:1995 | Assembly Scenario: | Shelf Supports, Drawer Slides, Back Panel Anchoring |
| Lead Time: | 15 Days (Standard) / 7 Days (Express) | MOQ: | 5000pcs |
| OEM/ODM Support: | Custom Packaging/Branding + Engraving | Packaging: | Polybag+Color Box+Carton (Export-Ready) |
Product Description
Product Description:

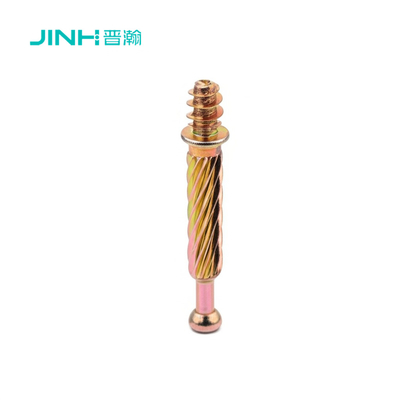

The JINHAN JH-2031 Minifix Connecting Bolt is a premium 3-in-1 fastening solution engineered for high-strength, concealed furniture assembly. Crafted from cold-rolled carbon steel and finished with iridescent zinc plating, this connector outperforms common zinc alloy alternatives with superior load-bearing capacity, anti-corrosion resilience, and aesthetic finesse. Designed for seamless integration with minifix cam locks, it enables tool-free assembly of cabinets, wardrobes, and modular storage systems with panels ≥15mm.
Key Features
✔️ Heavy-Duty Material: Cold-rolled carbon steel construction (vs. industry-standard zinc alloy) provides 200% higher shear strength and impact resistance.

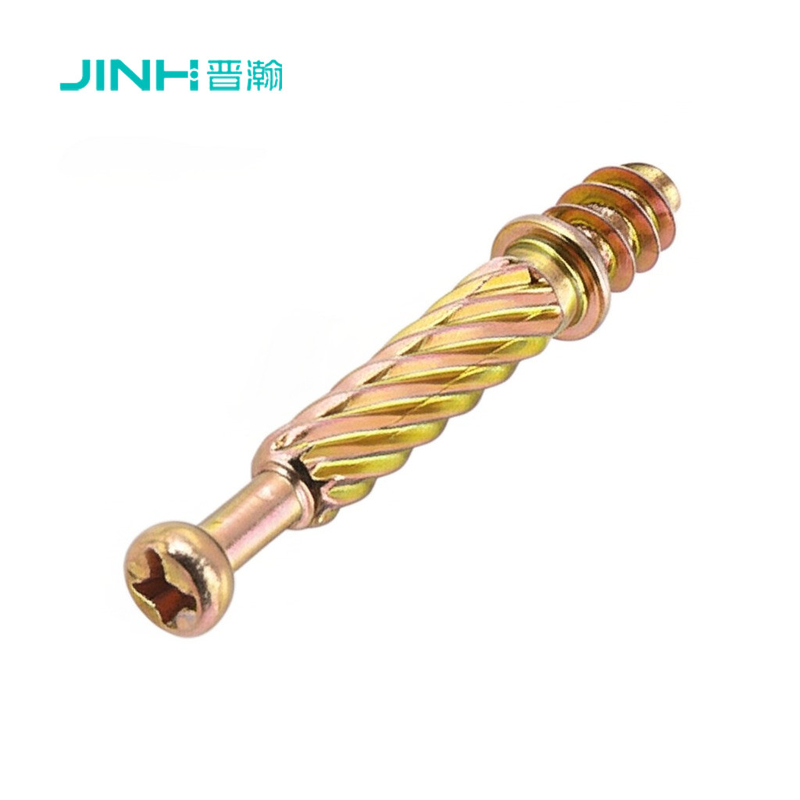

✔️ Anti-Slip Knurled Design: Unique twisted-texture shaft enhances grip friction by 50%, preventing loosening under vibration or load stress.
✔️ Invisible Installation: Recessed mounting eliminates surface protrusions, preserving clean lines and enhancing furniture aesthetics.
✔️ Corrosion Defense: Chromate conversion coating (iridescent zinc) exceeds 500hrs salt spray test (SGS-certified ASTM B117).
✔️ Universal Compatibility: Optimized for 15mm-30mm engineered panels (particleboard, MDF, plywood) across cabinet joints.
✔️ Precision Engineering: Tolerance ±0.05mm ensures perfect cam lock engagement for wobble-free structures.
✔️ Effortless Assembly: Integrated alignment ribs enable 1/4-turn quick locking – reduce labor time by 40%.
✔️ Certified Reliability: ISO 9001:2015 compliant manufacturing | SGS-tested for cyclic load durability (10,000+ cycles).
Functional Advantages
- Structural Integrity: Reinforces shelf-to-panel joints in high-stress zones (e.g., cantilevered shelves, heavy-load cabinets).
- Streamlined Workflow: Compatible with automated drilling CNC systems (32mm system friendly).
- End-User Convenience: Facilitates DIY disassembly/reassembly without damaging laminates.
- Space Efficiency: 40mm length maximizes thread engagement depth in standard panels.
Technical Specifications
Product Details:
